NTC Thermistors-Probe Assembly with Threaded Hex Nut & Tip

Temperature sensing, compensation and control with Ametherm NTC Thermistors- PANW

Ametherm NTC thermistors are manufactured from a specially-formulated metal oxide ceramic material that is extremely accurate in sensing temperature. Same high quality material is used in wide variety of housings and leaded parts for various applications such as:

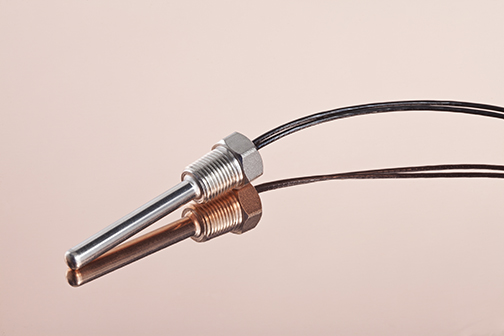

  • Temperature Sensingpanw picture
  • Temperature Detection
  • Transformers
  • Electric Motors
  • Air Sensors
  • HVAC

Request a Sample

Available at:

Mouser Distributor Digi Key

Electrical Specifications

Resistance @ 25° C 10 kΩ ±5
Temperature Coefficient of Resistance -4.43% / ºC
Operating Temperature Range -50 ºC to 150 ºC
Dissipation Constant 7.2 mW / ºC
Thermal Time Constant 6 seconds
Material Constant (Beta) 3950 ºK ±2%
ROHS Compliant Yes
MSL (moisture sensitivity level) 2

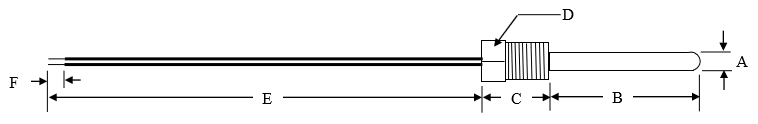

Mechanical Specifications

A 5.0 mm Diameter Nom
B 38.0 mm ±0.2mm
C 17.0 mm Nom
D 12 mm Hex
E 152.4 mm ±3mm
F 7.0mm Nom
Thread 1/8-27 NPT
Lead Wire Gauge 24 AWG stranded Teflon Insulated

Part Number R @ 25ºC (kΩ) Beta (K) R/T Curve Dissipation Constant Thermal Time Constant Max Power Digi-Key Mouser
PANW103395 10.0 3,950 L 10 25.0 125 570-1404-ND 995-PANW103395

If you require a custom configuration or a part not listed here, please contact our engineering department.
