Key Benefits:
- Recognized By Underwriters Laboratories For Ensured Safety
- Designed To Withstand High Steady Sate Current
- Absorbs And Minimizes High Input Energy
- Cost Effective One Component Solution To Inrush Current
- Wide Temperature Range Of Operation
Available from Ametherm Stocking Distributors
Electrical Specifications
| Part | UL | Resistance | SSI Max |
Joules Max |
D Max (mm) |
T Nom (mm) |
 |
 |
|---|---|---|---|---|---|---|---|---|
| AS32 0R536 | Y | 0.5 | 30 | 300 | 29 | 8 | 570-1103-ND | 995-AS32-0R536-100 |
| AS32 0R530 | Y | 0.5 | 30 | 300 | 29 | 5 | 570-1118-ND | 995-AS32-0R530-100 |
| AS32 1R030 | Y | 1.0 | 30 | 300 | 30 | 8 | 570-1104-ND | 995-AS32-1R030 |
| AS32 1R036 | Y | 1.0 | 36 | 300 | 30 | 8 | 570-1119-ND | 995-AS32-1R036-100 |
| AS32 2R025 | Y | 2.0 | 25 | 300 | 30 | 8 | 570-1105-ND | 995-AS32-2R025 |
| AS32 5R020 | Y | 5.0 | 20 | 300 | 32 | 8 | 570-1106-ND | 995-AS32-5R020 |
| AS32 10015 | Y | 10.0 | 15 | 250 | 30 | 9 | 570-1107-ND | 995-AS32-10015 |
| AS32 20010 | 20.0 | 10 | 250 | 29 | 9 | 570-1108-ND | ||
| AS32 50006 | 50.0 | 6 | 250 | 30 | 9 | 570-1109-ND |

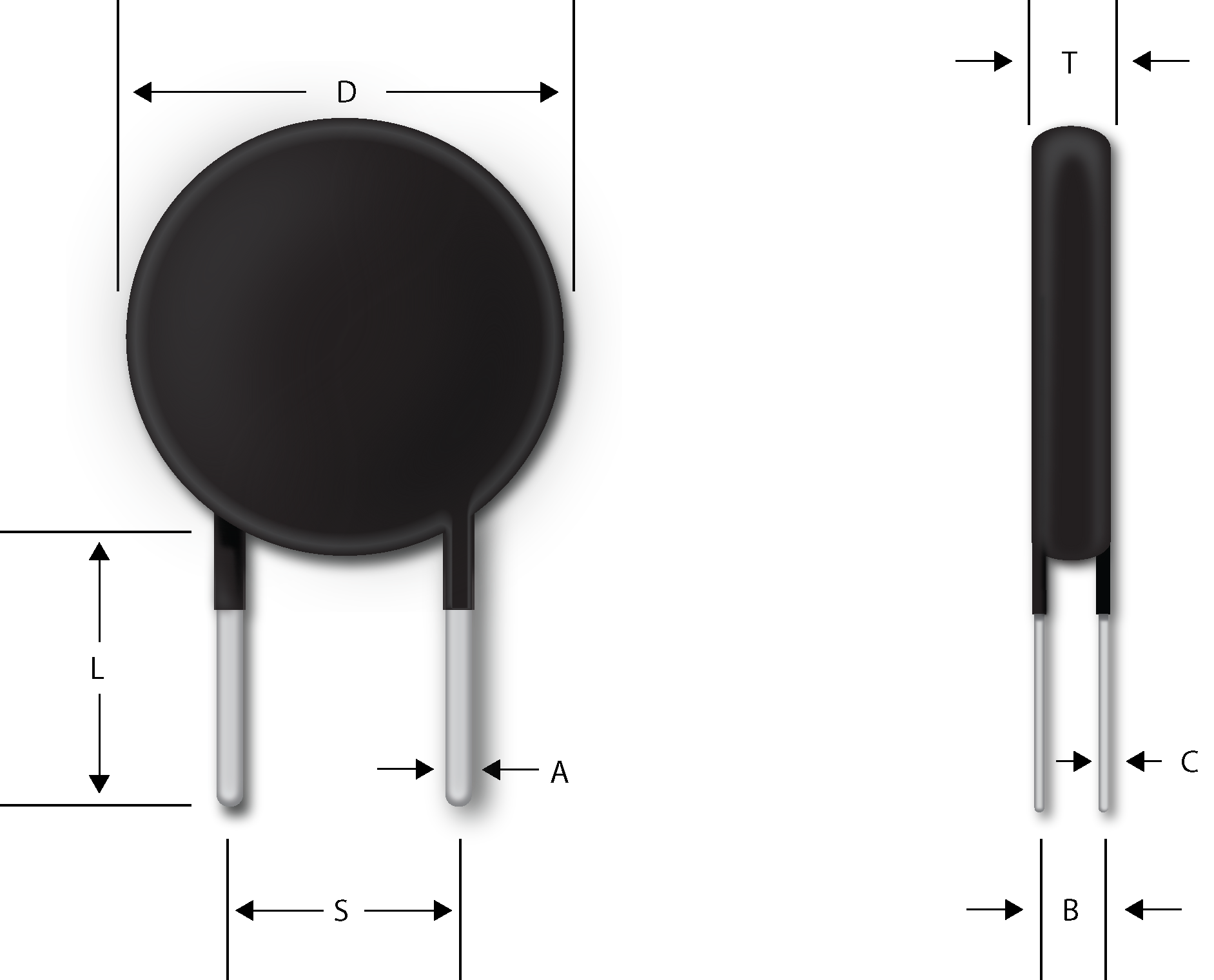

Mechanical Specifications
| Part | D | T | A | S | L | B | C | |
|---|---|---|---|---|---|---|---|---|
| AS32 0R536 | 29.00 | 7.80 | 17.50 | 22.00 | 4.80 | 0.90 |  |
|
| AS32 0R530 | 29.00 | 5.30 | 17.10 | 22.00 | 2.60 | 0.90 | ||
| AS32 1R030 | 30.00 | 8.00 | 17.10 | 22.00 | 2.40 | 0.80 | ||
| AS32 1R036 | 30.00 | 8.00 | 17.10 | 22.00 | 2.40 | 0.80 | ||
| AS32 2R025 | 30.00 | 7.80 | 17.10 | 21.00 | 4.80 | 0.80 | ||
| AS32 5R020 | 32.00 | 8.40 | 17.10 | 21.00 | 5.40 | 0.80 | ||
| AS32 10015 | 30.00 | 8.50 | 17.10 | 21.00 | 3.70 | 0.80 | ||
| AS32 20010 | 29.00 | 9.00 | 17.10 | 22.00 | 6.40 | 0.90 | ||
| AS32 50006 | 30.00 | 9.00 | 17.10 | 21.00 | 4.80 | 0.80 |
