MM35-DIN Series for High Power Inrush Current Applications

Ametherm thermistor Inrush Current Limiters have become the industry standard to reduce inrush current across the electronics industry. With the development of Ametherm’s MM35-DIN Series, Inrush Current Limiters can now take on industrial-strength high power inrush current inrush for high power industrial applications.
Reverse blue line

Reverse blue line

High Power Inrush Current Deserves Industrial Strength Inrush Current Protection

With continuous current ratings from 50A to 80A at 680V RMS and energy to 1,200 joules, the Ametherm MM35-DIN Series of Inrush Current Limiters can handle the high power levels found in the industrial environment.

Benefits of Employing the MM35-DIN Series













The MM35-DIN Series offer:

  • Higher energy ratings.
  • Ideal for power distribution.
  • Higher continuous current ratings.
  • Ideal for systems that are typically powered on once daily.
  • Single Part Solution. No need for additional by-pass circuitry.

Single and Three Phase Applications Include:

  • AC Motors.
  • Transformers.
  • Power Supply/Inverters.
  • Refer to the Maximum Power Ratings Chart for more applications.

SPECIAL INSTRUCTIONS

  • Inrush Current Limiter Selection Process – Depending on your equipment and load type and your power requirements, go to the Inrush Current Limiter Selection calculators chart below to determine the right calculations for your application.

Try a free sample              Talk to an engineer






MM35-DIN Series Electrical Specifications
MM35
0R280-DIN
MM35
0R560-DIN
MM35
1R050-DIN
MM35
1R550-DIN
Resistance @ 25 °C 0.2Ω ± 25% 0.5Ω ± 25% 1.0Ω ± 25% 1.5Ω ± 25%
Max Steady State Current to 65°C 80.0 A 60.0A 50.0A 50.0A
Max Recommended Energy Rating ( J ) 1200.0 Joules
Rhot @ 100% Steady State Current 0.004Ω 0.008Ω 0.011Ω 0.013Ω
Rhot @ 75% Steady State Current 0.006Ω 0.011Ω 0.015Ω 0.017Ω
Rhot @ 50% Steady State Current 0.011Ω 0.020Ω 0.030Ω 0.036Ω
Rhot @ 25% Steady State Current 0.029Ω 0.052Ω 0.078Ω 0.091Ω
Max Recommended Voltage 680V RMS
Max Power 38.4 W
Thermal Time Constant < 5 mins

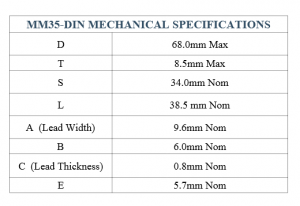

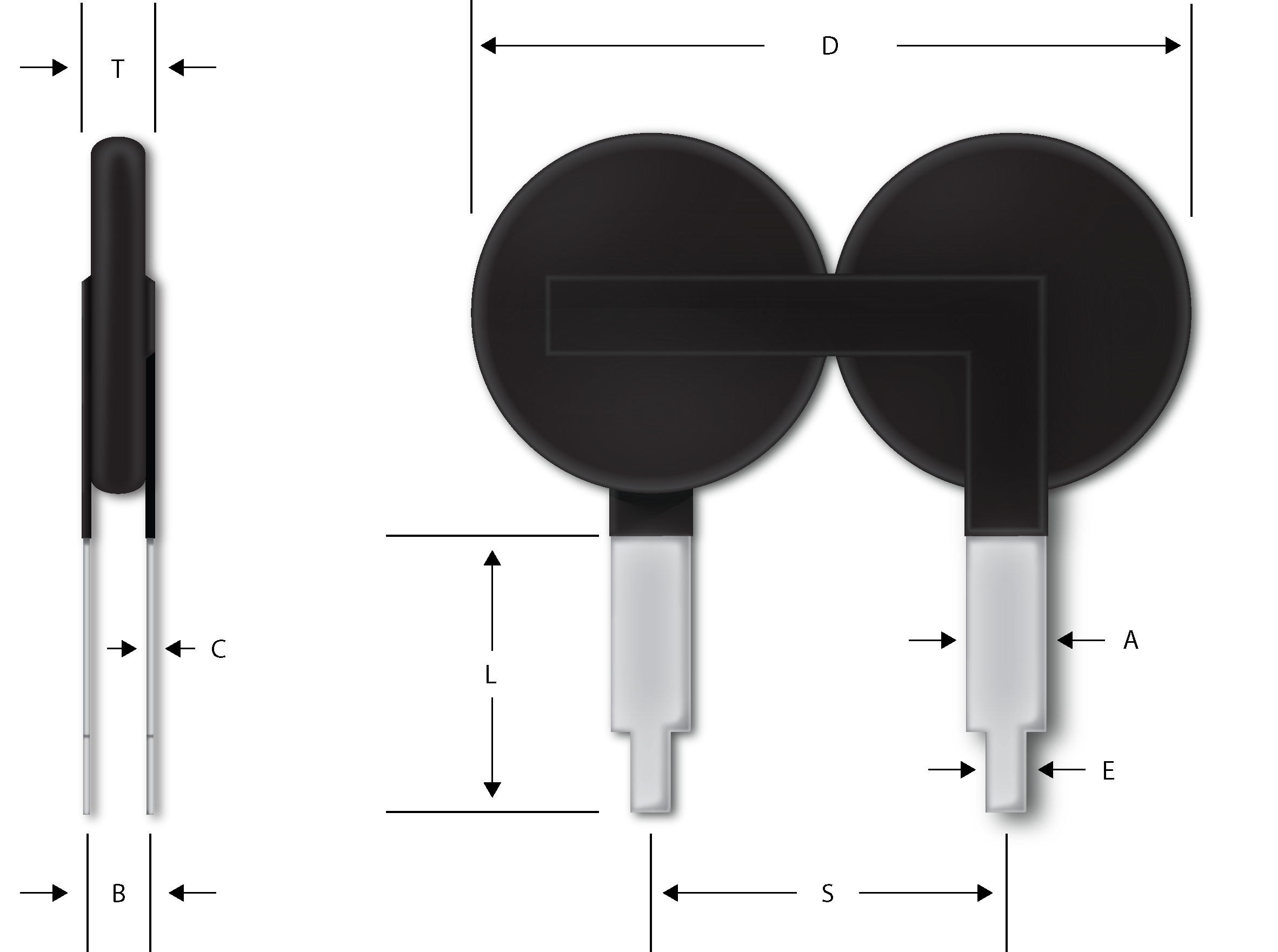

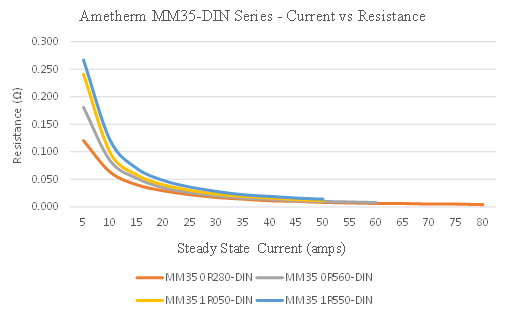

MM35 Steady State Current vs Resistance

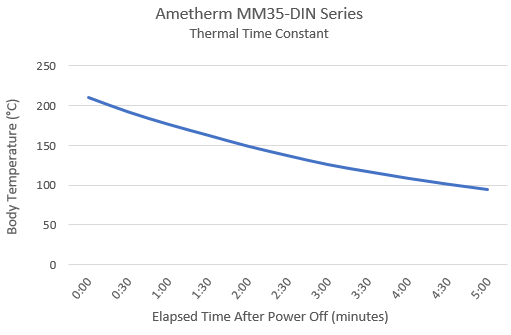

Ametherm mm35 DIN Thermal Time Constant22







MM35 Cool Down Duration

Steady State Current vs Body Temperature

Ambient Temperature =25 °C


Steady State Current (A) MM35
0R280-DIN
MM35
0R560 -DIN
MM35
1R050-DIN
MM35
1R550-DIN
5 49 61 66 71
10 73 90 101 99
15 93 110 123 121
20 108 128 140 139
25 123 144 155 152
30 134 157 168 165
35 147 169 182 177
40 156 178 191 188
45 166 188 202 198
50 174 200 214 208
55 181 207
60 190 217
65 196
70 203
75 209
80 215



Typical Maximum Power Ratings
for Common Applications

Load Type Equipment Type Single-Phase Three-Phase
Inductive Transformer
AC Motor
40 kVA
50 HP
70 kVA
90 HP
Capacitive Variable Frequency Drive
Power Supply/Inverter
Capacitor Bank*
50 HP
40 kW
2100 µF
90 HP
70 kW
2100 µF
Resistive Heater/Lamp** 6 kW
*680 V RMS Max Voltage **200 Milliseconds Max Inrush Current Duration











Inrush Current Limiter Selection Calculator
Load Type Equipment Type Single-Phase Power Three-Phase Power
Inductive Transformer
AC Motor
Go to Calculator
Go to Calculator
Go to Calculator
Go to Calculator
Capacitive Variable Frequency Drive
Power Supply/Inverter
Capacitor Bank
Go to Calculator

Go to Calculator

Go to Calculator

Go to Calculator

Go to Calculator

Go to Calculator

Resistive Heater/Lamp Go to Calculator Go to Calculator



Reverse blue line

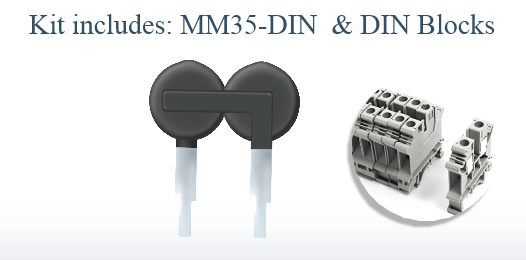

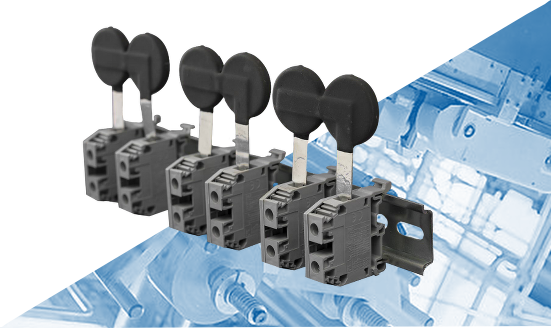

High Power Inrush Current Protection. Kit Includes MM35-DIN and DIN Blocks



MM35-DIN Series Installation

Mounting MM35-DIN Inrush Current Limiters is a snap! Since they are designed for use with DIN blocks, mounting in a power control box requires just a screwdriver.

Whether you’re dealing with three-phase or single-phase power, the MM35-DIN Series of Inrush Current Limiters is your best choice for your high power application requirements.

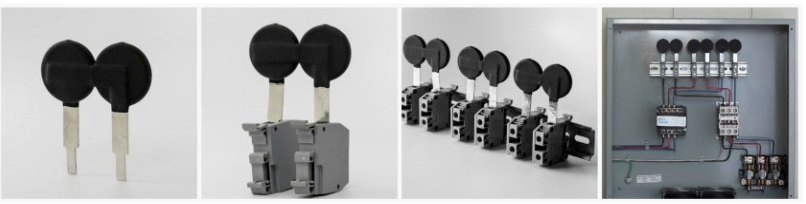

New MM35-DIN Assembly



Contact us for more information on our MM35-DIN Series of Inrush Current Limiters. Our engineers are always available to assist you.
