Now Available!

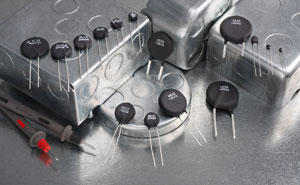

inrush-current-limiter-full-line






inrush-current-limter drawing

UL-CSA Inrush Current Limiters

Part UL CSA R SSI
Max
Joules
Max
D Max
(mm)
T Nom
(mm)
Digikey Newark Farnell
SL22 0R516 Yes Yes 0.5 16 160 22 6 570-1031-ND 72J6814
AS32 0R536-100 Yes   0.5 36 300 29 8
AS32 0R530-100 Yes   0.5 30 300 29 5
SL32 0R530   Yes 0.5 30 150 31 5 570-1056-ND 72J6840
SL32 0R536   Yes 0.5 36 150 31 5 570-1057-ND 72J6841 9008284
SL22 0R712 Yes Yes 0.7 12 120 22 6 570-1031-ND 72J6815 9008039
SL22 1R020 Yes Yes 1.0 20 65 22 6 570-1041-ND 72J6816 9008047
AS32 1R036-100 Yes   1.0 25 300 30 8
AS32 1R030-100 Yes   1.0 25 300 30 8
SL32 1R030   Yes 1.0 30 160 31 5 570-1059-ND 72J6842 9008306
SL32 1R036   Yes 1.0 36 160 31 6 570-1060-ND 72J6843 1653461
SL12 1R308 Yes Yes 1.3 8 40 13 5 72J6731 9007172
SL10 2R005 Yes   2.0 5 30 10 5 570-1081-ND 72J6716 9007024
SL22 2R018 Yes Yes 2.0 18 90 22 6 570-1044-ND 72J6826 1653455
SL32 2R023   Yes 2.0 23 250 31 6 570-1061-ND 72J6845 9008330
SL32 2R025   Yes 2.0 25 300 31 6 570-1062-ND 72J6846 9008349
SL08 2R503 Yes   2.5 3 10 8 4
SL10 2R505   Yes 2.5 5 30 10 5 570-1098-ND 72J6717 9007032
SL12 2R505 Yes   2.5 5 36 13 5 72J6745
SL15 2R508   Yes 2.5 8 40 16 5 72J6780
SL15 2R509   Yes 2.5 9 40 16 5 SL15 2R509-ND 72J6781
SL22 2R510 Yes   2.5 10 90 22 6 570-1046-ND 72J6828
SL22 2R515 Yes   2.5 15 90 22 6 570-1047-ND 72J6829 9008179
SL10 4R004 Yes Yes 4.0 4 20 10 5
SL22 4R014 Yes Yes 4.0 14 100 22 6 570-1050-ND 72J6833 9008217
SL08 5R002 Yes   5.0 2 10 8 4
SL12 5R004 Yes   5.0 4 40 12 5 72J6756
SL15 5R007   Yes 5.0 7 50 16 6 570-1070-ND 72J6796 9007849
SL22 5R012 Yes Yes 5.0 12 100 22 6 570-1053-ND 72J6836 9008241
SL32 5R020   Yes 5.0 20 200 31 6 570-1064-ND 72J6848 9008365
SL22 7R010 Yes Yes 7.0 10 100 22 6 570-1055-ND 72J6839 1653458
SL08 10002   Yes 10.0 2 10 8 5 570-1094-ND 72J6684 9006702
SL10 10003 Yes Yes 10.0 3 17 10 5 570-1082-ND 72J6711 9006974
SL12 10005 Yes Yes 10.0 5 60     9007199
SL22 10007 Yes   10.0 7 90 22 5 570-1033-ND 72J6818 9008063
SL22 10008 Yes Yes 10.0 8 90 22 6 570-1034-ND 72J6819 9008071
SL32 10015   Yes 10.0 15 150 31 6 570-1058-ND 72J6844 9008322
SL22 14007 Yes   14.0 7 75 22 6 570-1039-ND 72J6824 9008128
SL12 15004 Yes   15.0 4 4 12 5
SL22 16004 Yes Yes 16.0 4 100 22 7 570-1040-ND 72J6825 9008136
SL12 20003 Yes   20.0 3 35 13 6 570-1076-ND 72J6748 9007342
SL22 20005 Yes Yes 20.0 5 125 22 7 SL22 20005-ND
SL10 25002 Yes   25.0 2 20 10 5
SL12 25003 Yes   25.0 3 45 12 5 72J6751
SL15 25003   Yes 25.0 3 50 16 6 72J6785 9007725
SL22 30005 Yes Yes 30.0 5 80 22 6 570-1048-ND 72J6832 9008209
SL12 40002 Yes   40.0 2 20 12 5
SL10 40002 Yes   40.0 2 15 10 5
SL15 40004 Yes   40.0 4 35 15 5 72J6791 9007792
SL22 40005   Yes 40.0 5 63 22 5 570-1049-ND 72J6834 9008225
SL10 50001 Yes   50.0 1 18 10 5
SL10 50002   Yes 50.0 2 18 10 4 570-1080-ND 72J6728 9007148
SL12 50002 Yes   50.0 2 20 13 5 570-1074-ND 72J6758 9007458
SL22 50004 Yes Yes 50.0 4 80 22 7 570-1051-ND 72J6837
SL22 60003 Yes Yes 60.0 3 72 22 7 570-1054-ND 72J6838
SL15 60004 Yes   60.0 4 50 16 6 72J6801 9007890
SL12 80002 Yes   80.0 2 30 13 6 72J6762
SL15 80002 Yes   80.0 2 45 15 6
SL12 8R003 Yes   80.0 3 25 12 5
SL10 12101 Yes Yes 120.0 1 14 10 5
SL15 12102 Yes   120.0 2 40 15 6
SL22 12103 Yes Yes 120.0 3 80 22 6 570-1037-ND 72J6822 9008101
SL12 22101 Yes   220.0 1 30 12 6
SL15 22102 Yes Yes 220.0 2 40 16 6 570-1073-ND 72J6784 9007717
